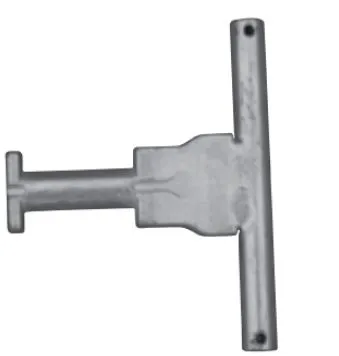

Waqqa-Link Pin falsifikathuwa tip ta 'twaħħil ta' drop-falsifikati ktajjen revetless għal conveyors, bħal X348, X458, X678. Aħna nipprovdu tliet tipi għall-klijenti li jagħżlu, jekk jogħġbok iċċekkja d-dimensjonijiet bir-reqqa qabel ma tagħmel ordni.
Drawing and dimensions of Waqqa-Link Pin falsifikat
| Katina Nru. | Dimensjonijiet | Piż | ||||||||
| A | C | L | D | G | F | B | E | M | Kg/Pcs | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| X458 | 31.0 | 43.0 | 89.5 | 16.0 | 40.0 | 10.0 | / | / | / | 0.18 |
| Katina Nru. | Dimensjonijiet | Piż | ||||||||
| A | C | L | D | G | F | B | E | M | Kg/Pcs | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| X458 | 31.0 | 42.0 | 92.0 | 16.0 | / | / | 36.0 | 4.8 | M12 | 0.15 |
| X678-1 | 48.0 | 57.2 | 136.0 | 22.0 | / | / | 59.0 | / | M22 | 0.46 |
| X678-2 | 48.0 | 57.2 | 119.0 | 22.0 | / | / | 42.0 | / | M16 | 0.39 |
| X698-1 | 63.0 | 69.2 | 138.0 | 28.0 | / | / | 40.0 | / | 3/4-10UNC | 0.76 |
| X698-2 | 63.0 | 69.2 | 146.0 | 28.0 | / | / | 50.8 | 3.2 | 1 1/8-7UNC | 0.82 |
| Katina Nru. | Dimensjonijiet | Piż | ||||||||
| A | C | L | D | G | F | B | E | M | Kg/Pcs | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| X348 | 25.0 | 42.0 | 63.5 | 12.7 | / | / | 15.0 | 2.5 | M10 | 0.06 |
| X458 | 32.0 | 50.0 | 77.5 | 16.0 | / | / | 20.0 | 3.1 | M12 | 0.12 |
| X678 | 46.0 | 57.5 | 96.0 | 22.0 | / | / | 29.0 | 4.5 | M16 | 0.32 |
| X698-1 | 63.0 | 69.2 | 111.6 | 28.6 | / | / | 28.2 | 3.0 | 3/4-10UNC | 0.67 |
| X698-2 | 63.0 | 68.4 | 122.3 | 28.6 | / | / | 40.0 | / | 3/4-10UNC | 0.69 |
GZG certificate
Wirja tal-fabbrika
Appoġġ għat-trasport
Aqra qabel ma tagħmel ordni
1. Liema tip ta 'katina għandek bżonn?
2. Kemm għandek bżonn links?
3. Liema port tridna nibagħtu l-prodotti?
4. Tista' tibgħatilna t-tpinġija tiegħek jekk il-katina u t-twaħħil tiegħek mhumiex-standard?
